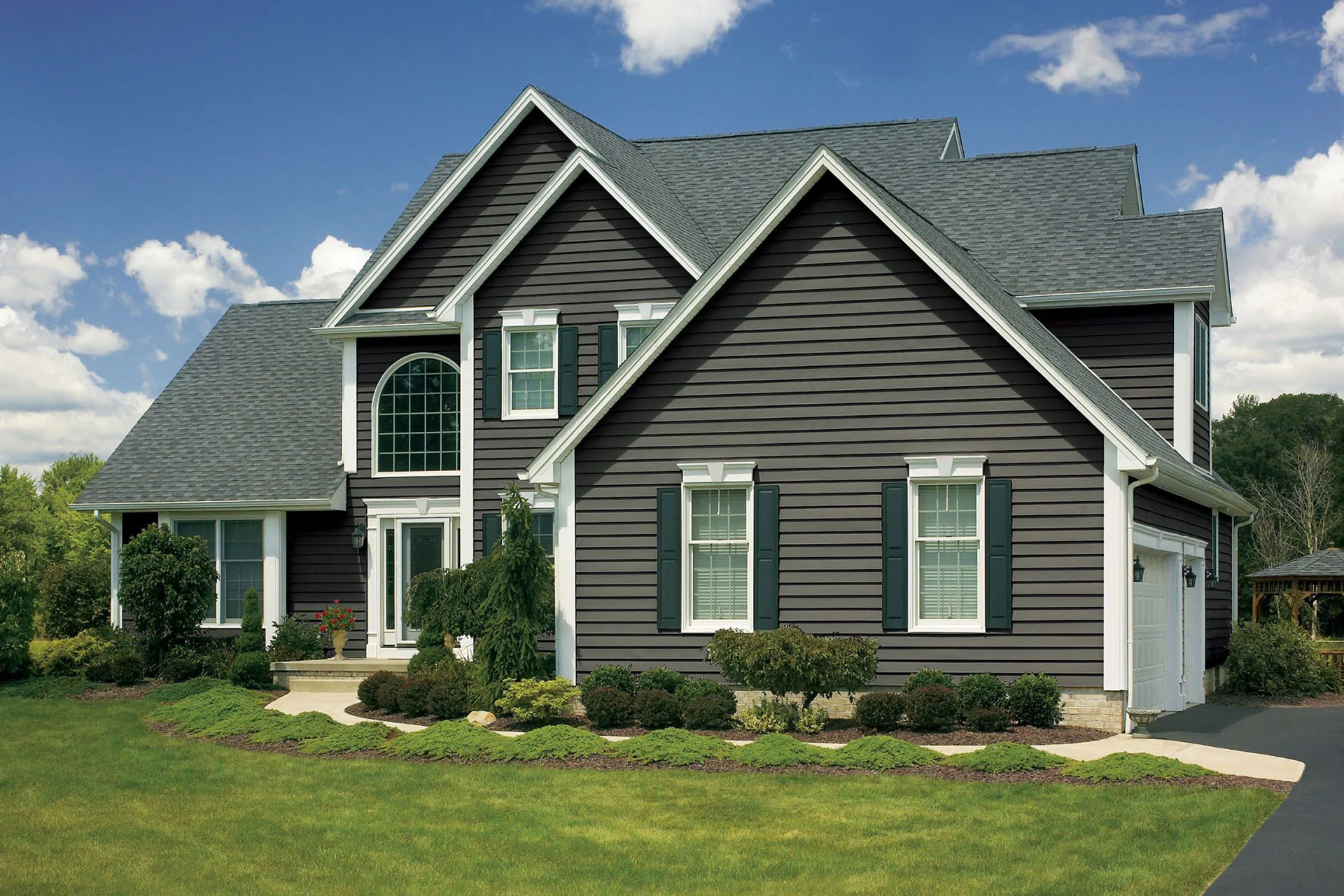

Top Insulated Vinyl Siding Plans: The Definitive Guide to Energy

Top insulated vinyl siding plans. The evolution of residential building envelopes has reached a critical juncture where the division between structural protection and energy efficiency is effectively dissolving. Traditionally, siding was viewed as a “rainscreen,” a sacrificial layer designed to shed water and protect the underlying wood sheathing. However, the modern homeowner and developer now demand more from this exterior skin. The rise of insulated vinyl siding represents a systemic shift toward a “holistic wall” philosophy, where the cladding performs multiple roles: thermal break, acoustic dampener, and impact-resistant shield.

Navigating the landscape of modern cladding requires more than a surface-level appreciation for color or texture. It demands an understanding of the R-value, the measure of thermal resistance, and how that resistance interacts with the existing insulation within a home’s wall cavities. When planning a siding replacement, one must consider the “thermal bridge” effect, where heat escapes through the wooden studs of a house. Insulated siding acts as a continuous thermal blanket, a crucial detail often overlooked in standard renovation projects that focus purely on aesthetics.

The complexity of these projects is compounded by the variety of foam-backing technologies and the precision required in their installation. Unlike traditional vinyl, which is thin and flexible, insulated variants possess a structural rigidity that dictates a different set of rules for trim, flashing, and expansion gaps. As we explore the most effective strategies for implementation, it becomes clear that a successful project is the result of rigorous planning and a deep understanding of building science rather than a simple material purchase.

Understanding “top insulated vinyl siding plans.”

When professionals discuss top insulated vinyl siding plans, they are referring to a comprehensive architectural strategy that goes beyond selecting a product from a catalog. A “plan” in this context involves a detailed assessment of the home’s current thermal performance, the climate-specific vapor permeability requirements, and the structural readiness of the existing substrate. The primary misunderstanding is the belief that insulated siding is a “plug-and-play” replacement for traditional vinyl. In reality, the added thickness of the foam backing, often ranging from 1/2 inch to 1.5 inches, requires a total recalibration of the home’s exterior geometry.

A significant risk in the planning phase is oversimplifying the impact of the added R-value. While a plan might promise a 20% increase in energy efficiency, that figure is only achievable if the plan accounts for “thermal bypasses” at the windows, doors, and rooflines. If the insulated siding is not properly integrated with specialized wide-profile trim, the insulation is essentially “leaking” at every junction. Therefore, the “top” plans are those that treat the siding as one component of a larger, airtight, and vapor-intelligent system.

Furthermore, the term “top” implies a prioritization of long-term durability. This involves looking at the density of the Expanded Polystyrene (EPS) or Graphite Polystyrene (GPS) foam used in the backing. Higher-density foam provides better impact resistance against hail or debris, but it also alters the way the vinyl expands and contracts in the sun. A sophisticated plan must account for these mechanical stresses to avoid the “oil-canning” or buckling that plagued earlier generations of composite cladding.

Historical Evolution: From Hollow Shells to Composite Systems

The trajectory of vinyl siding has moved from a cheap, post-war alternative to wood toward a high-performance building material. In the 1960s and 70s, vinyl was essentially a plastic skin. It was valued for its low maintenance, but was thermally useless and physically fragile. The 1990s saw the birth of “contoured insulation,” where foam inserts were placed behind the vinyl panels. These were often loose-fitting and did not offer a true thermal break because they lacked a cohesive bond with the PVC panel.

The modern era of insulated siding is defined by “factory-bonded” systems. In these configurations, the foam and the vinyl are fused during the manufacturing process. This creates a structural composite that is significantly more rigid than the sum of its parts. This evolution was driven largely by changes in International Energy Conservation Codes (IECC), which began requiring continuous insulation on the exterior of homes to combat the thermal conductivity of wood and metal studs.

This systemic evolution also addressed a major aesthetic hurdle. Historically, vinyl was criticized for looking “thin” or “plastic.” By bonding the vinyl to a rigid foam core, manufacturers were able to create wider, flatter profiles that mimic the appearance of hand-milled wood planks. The history of this material is a story of turning a perceived weakness, the flexibility of plastic, into a strength by providing it with a permanent, insulating skeleton.

Conceptual Frameworks for Thermal Envelope Design

To execute a project successfully, one must apply specific mental models that balance the laws of physics with the realities of construction.

1. The Continuous Insulation (CI) Framework

This framework posits that any break in the insulation layer is a failure point. In top insulated vinyl siding plans, the goal is to wrap the house in a seamless blanket. This model forces the planner to look at the “rim joists” and the “corner transitions” as the most critical parts of the design, rather than the flat walls. If the insulation stops at the corner post, the framework dictates that the plan is incomplete.

2. The Vapor Permeability vs. Air Sealing Balance

A common failure in siding replacement is sealing a house so tightly that it cannot breathe, leading to mold behind the walls. The framework used by experts involves selecting an insulated siding system with a specific “perm rating.” The foam backing must allow water vapor to escape from the inside of the house while the vinyl exterior sheds liquid water from the outside.

3. The Lifecycle Cost vs. Energy Payback Model

This model moves away from the “lowest bid” mentality. It calculates the total cost of ownership over 30 years, factoring in rising energy costs, the lack of a need for repainting, and the potential increase in home resale value. Within this framework, the “top” plan is often the one with the highest upfront cost but the fastest return on investment through utility savings and material longevity.

Key Categories of Insulated Siding and Material Trade-offs

Selecting the right category of insulated siding requires a technical understanding of how different foams and vinyl thicknesses interact.

Expanded Polystyrene (EPS) Bonded Siding: The most common variety. It offers a good balance of cost and R-value. It is highly breathable, making it a safe choice for older homes with traditional wood framing.
Graphite Polystyrene (GPS) Systems: These panels have a distinctive grey color. The graphite particles reflect radiant heat, providing a higher R-value in the same thickness as EPS. These are ideal for extreme cold climates.
Neopor-Enhanced Composites: A specialized subset of GPS that offers superior thermal performance and is often used in “passive house” designs where energy efficiency is the primary metric.
Contoured vs. Flat-Back Insulation: While factory-bonded (contoured) is the gold standard, some plans utilize a flat-back foam board with a standard vinyl panel over it. This is cheaper but lacks the impact resistance of a bonded system.

Comparison of Insulation Technologies

Feature	EPS Bonded	GPS (Graphite)	Flat-Back Board
R-Value per Inch	~3.8 – 4.1	~4.7 – 5.0	~3.0 – 3.5
Breathability (Perms)	High	Moderate	Low (depending on board)
Impact Resistance	Very High	High	Moderate
Cost Profile	Mid-Range	Premium	Budget-Friendly

Detailed Real-World Implementation Scenarios

Scenario A: The 1920s Bungalow Retrofit

A homeowner wants to preserve the look of 4-inch wood lap siding but needs to reduce heating costs in a Northern climate.

Decision Logic: Select a “Double 4-inch” EPS-bonded insulated vinyl. The narrow profile maintains the historical scale, while the bonded foam prevents the “rattle” associated with older vinyl.
Constraint: The original window casings are shallow. The plan must include “built-out” window sills to accommodate the 1.25-inch total thickness of the new siding.
Failure Mode: Using standard J-channel trim, which would look bulky and trap water against the old window frames.

Scenario B: The Coastal Modern Build

A new construction home in a high-humidity, high-wind zone requires durability and a clean, vertical aesthetic.

Decision Logic: Utilize an insulated “Board and Batten” vertical vinyl. The vertical orientation sheds water quickly, and the foam backing provides the rigidity needed to prevent wind-induced vibration.
Second-Order Effect: The insulation provides a significant reduction in noise from wind and rain, which is a major comfort factor in coastal environments.

Planning, Cost, and Resource Dynamics

The economics of top insulated vinyl siding plans are often misunderstood because the “sticker price” of the material is only one variable in a complex equation.

Expense Category	Standard Vinyl	Insulated Vinyl (Premium)
Material (per sq. ft.)	$1.50 – $3.00	$4.50 – $8.00
Specialized Trim/Accessories	Minimal	Significant (Wide-profile)
Labor (Specialized Skill)	Standard	High (Precision cutting/flashing)
Annual Utility Savings	0 – 3%	12 – 22%

The “Direct Cost” includes the panels and fasteners. However, the “Indirect Cost” of not updating the house wrap or the flashing can lead to moisture damage that costs ten times the original installation. Resource dynamics also involve the availability of certified installers; because insulated siding is more rigid, it is less forgiving of “un-level” foundations, requiring more prep work in the planning phase.

Tools, Strategies, and Installation Support Systems

A plan is only as good as the execution tools used to bring it to life. For insulated systems, the toolkit is specialized.

High-Offset Circular Saw Blades: Standard vinyl snips can crack the cold PVC or tear the foam. Fine-tooth circular blades or specialized “siding shears” are required for clean, factory-like edges.
Wide-Pocket J-Channels: Because the siding is thicker, standard trim won’t fit. Top-tier plans specify 1-1/8″ or 1-1/2″ pocket depths to allow for the siding to move freely.
Thermal Imaging Cameras: Before and after installation, these tools are used to verify that the “blanket” is working and to identify any remaining thermal bridges.
Starter Strip Elevation Tools: The first course of insulated siding must be perfectly level. Because of the rigidity of the foam, you cannot “cheat” the panels up or down like you can with thin vinyl.
Moisture Meters: Checking the moisture content of the OSB or plywood sheathing before installation ensures that you aren’t sealing in rot.
Tape-and-Seal Flashing Systems: In a high-performance plan, windows are not just caulked; they are wrapped in specialized flashing tape that integrates with the siding’s foam backing.

Risk Landscape and Failure Modes in Insulated Cladding

The transition to insulated systems introduces new risks that must be managed. The most prevalent is Interfacial Condensation. This occurs when warm, moist air from inside the house reaches the cold backside of the vinyl and turns into liquid water. If the foam backing is not “contoured” to allow drainage, this water can sit against the wood sheathing.

Another risk is Thermal Distortion. Darker colors of vinyl siding absorb more heat. While the foam provides a heat sink, it also limits the panel’s ability to dissipate heat into the wall cavity. In extreme heat, the vinyl can “smile” (sag) or buckle if the expansion gaps at the ends of the panels were not calculated correctly in the initial plan.

Finally, there is the Compounding Risk of Poor Substrates. Insulated siding is heavy. If it is fastened into old, water-damaged wood, the nails will eventually pull through under the weight of the panels combined with wind loads. A plan that doesn’t include a “substrate audit” is inherently flawed.

Long-Term Adaptation and Maintenance Governance

Unlike wood, which requires a 5-7 year painting cycle, insulated vinyl requires a “Governance” approach, monitoring the system’s performance over decades.

Quarterly Visual Audits: Homeowners should check the “overlap” seams. As the house settles, these seams can open up, creating a gap in the insulation blanket.
Drainage Hole Monitoring: Modern insulated siding has “weep holes” at the bottom of each panel. These must remain clear of dirt or mulch to allow moisture to escape.
Adjustable Trim Checks: Around doors and windows, the sealant (caulk) will eventually fail. A 3-year review cycle for all penetration points is recommended to ensure the airtightness of the plan remains intact.
The “Sound Test”: Walking the perimeter and lightly pressing on panels. If a panel feels “mushy,” it may indicate moisture trapped behind the foam, triggering a deeper inspection.

Evaluation Metrics: Measuring Thermal and Structural Success

How does one determine if the top insulated vinyl siding plans were actually successful? We use a combination of qualitative and quantitative signals.

Quantitative: The Degree Day Correlation. By comparing utility bills with “Heating Degree Days” (HDD), one can calculate the exact reduction in BTUs required to heat the home per degree of outside cold. A successful project should show a clear downward trend in energy consumption.
Qualitative: The Acoustic Buffer Check. A significant “lagging indicator” of quality insulation is the reduction in ambient noise. Measuring decibel levels from street traffic before and after installation provides a clear metric of the system’s density.
Documentation: The Installation Log. This documentation is vital for warranty claims and future resale value.

Common Misconceptions and Oversimplifications

Myth: Insulated siding replaces the need for interior insulation.
- Correction: It is a supplemental layer designed to stop thermal bridging through studs; it does not replace fiberglass or spray foam in the wall cavities.
Myth: It makes the house a “fire trap.”
- Correction: Most modern foam backings are treated with fire retardants and have a “Class A” fire rating, meaning they do not contribute significantly to the spread of flame.
Myth: You can’t install it in winter.
- Correction: It can be installed in cold weather, but the “gap calculation” must be adjusted because the vinyl is at its maximum contraction.
Myth: Insects love to live in the foam.
- Correction: Top-tier plans use foam treated with borates, which are non-toxic to humans but highly deterrent to ants and termites.
Myth: It looks exactly like regular vinyl.
- Correction: Because it is thicker and more rigid, it lacks the “waviness” of cheap vinyl and provides much deeper shadow lines, giving it a more premium, wood-like appearance.

Ethical and Practical Considerations

In the context of sustainable building, insulated vinyl presents an interesting paradox. While it is a petroleum-based product, its long lifespan (50+ years) and the energy it saves over that period often give it a lower “Environmental Impact Score” than wood siding that requires frequent chemical painting and replacement. Practically, the choice of insulated siding is also an ethical choice for the neighborhood; by reducing the energy load of a single home, we contribute to a more resilient local power grid.

Conclusion

The implementation of top insulated vinyl siding plans is an exercise in long-term thinking. It is an acknowledgment that a home’s exterior is not just a facade, but a complex machine designed to manage heat, moisture, and sound. By moving beyond the aesthetic and into the structural and thermal realities of cladding, homeowners can secure their investment against rising energy costs and environmental wear.
